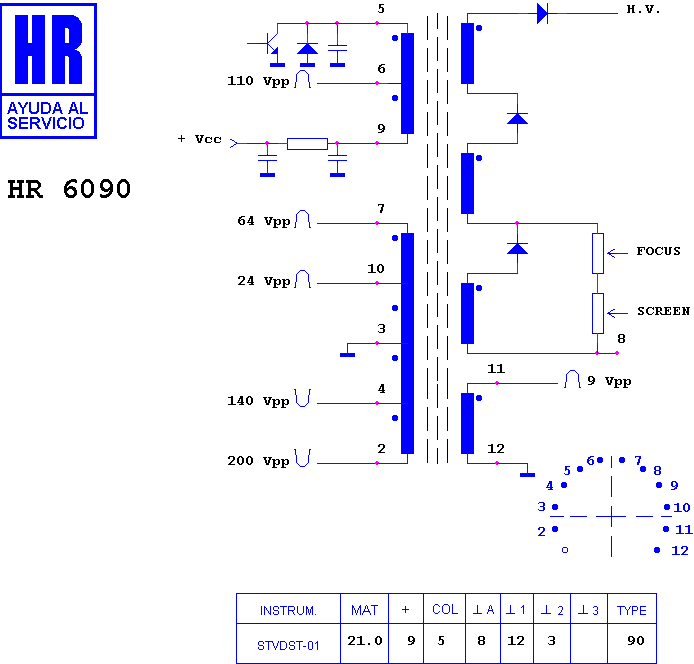

HR 6090

type ST · family 1BP1 · 21 kV maximum anode voltage · 90° deflection · 2 windings · 362 g

Manufacturer equivalents (1)

D 284/37

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6127 · HR 7058 · HR 7830 · HR 7444 · HR 7996 · HR 6479 · HR 7983 · HR 7711 · HR 7669 · HR 7905 · HR 8087 · HR 7439

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Search this part in the full database
