HR 7280

type ST · family 1AP1 · 20.7 kV maximum anode voltage · 90° deflection · 5 windings · 357 g

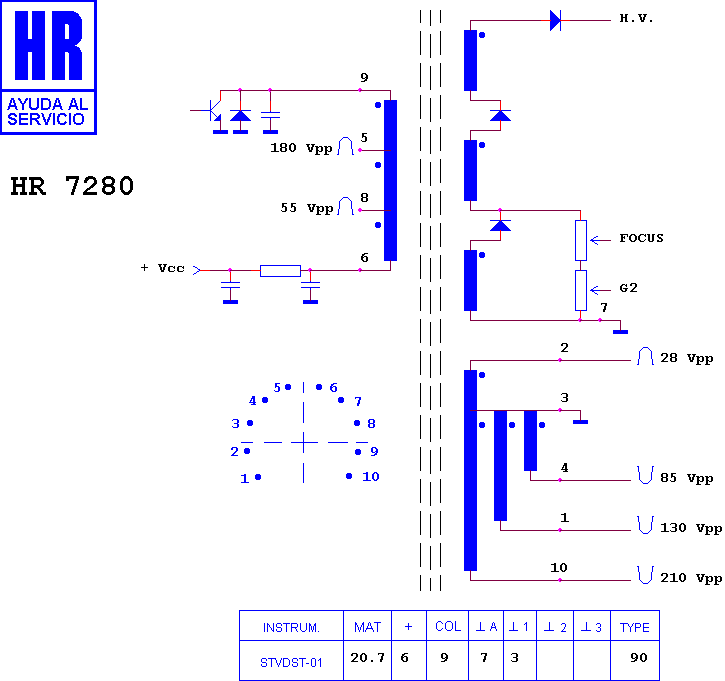

Schematic diagram for HR 7280
schematic

Manufacturer equivalents (8)

198622 · 2 G 25010-501 · 2625010 · 2625010-502 · 2G25010-503 · 30767400XX00 · 5066200 · RC 198622

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7274 · HR 7172 · HR 8568 · HR 7725 · HR 7636 · HR 7749 · HR 8113 · HR 6020 · HR 80320 · HR 7235 · HR 7541 · HR 7144

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
