HR 7749

type ST · family 1XP1 · 22.8 kV maximum anode voltage · 90° deflection · 3 windings · 258 g

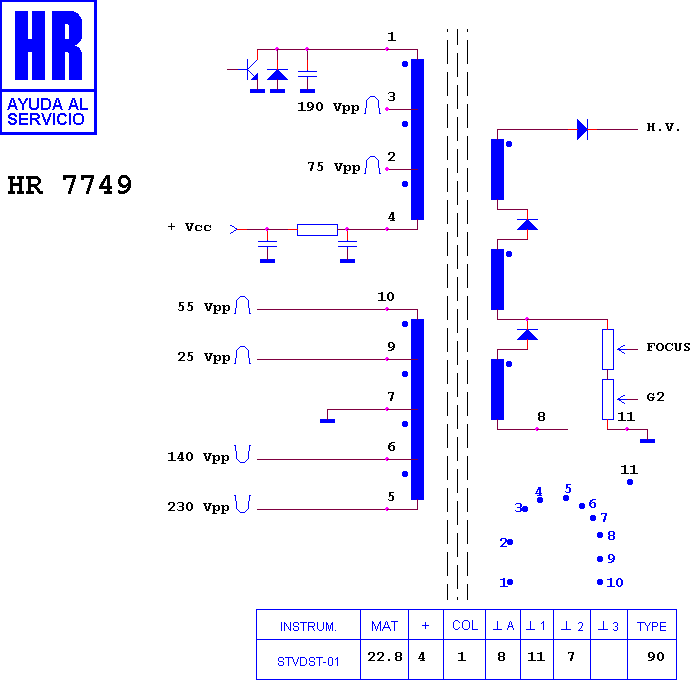

Schematic diagram for HR 7749
schematic

Manufacturer equivalents (2)

154 177 E · 154A06E

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8301 · HR 7481 · HR 8113 · HR 7621 · HR 6558 · HR 7235 · HR 7636 · HR 7144 · HR 7310 · HR 7274 · HR 8093 · HR 7617

Fitted to (7)

GOLDSTAR - LG 20 K · GOLDSTAR - LG 9742 · GOLDSTAR - LG 9745 · GOLDSTAR - LG 9762 · GOLDSTAR - LG CF 20 A 62 D · GOLDSTAR - LG CMT 1354 · GOLDSTAR - LG GT 51 R
