HR 8794

23.2 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

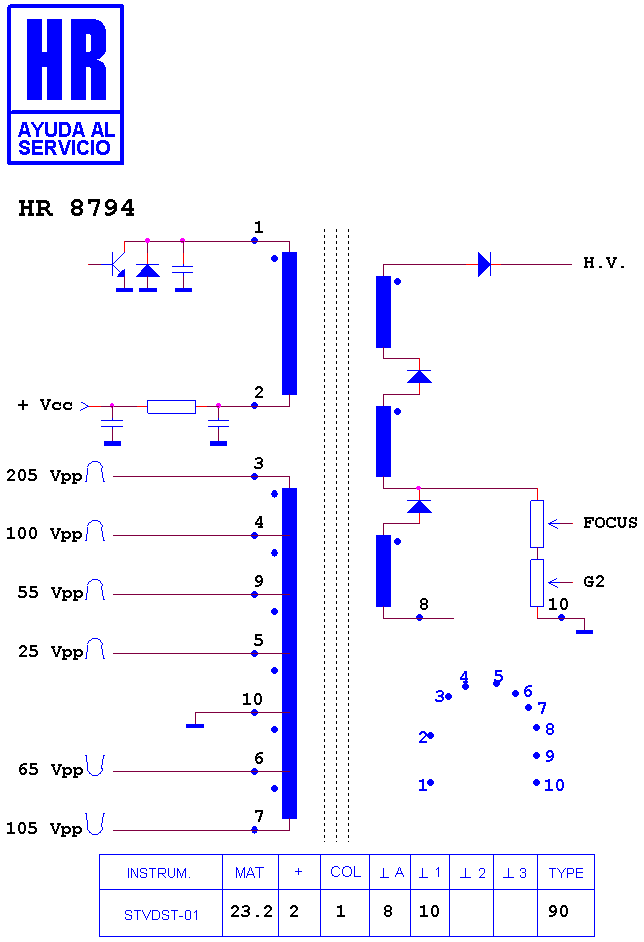

Schematic diagram for HR 8794
schematic (archived)

Manufacturer equivalents (8)

1342.0033 · 1342.00332 A · 1342.0033A · 1342.0033C · 242253102464 · 53102464 · HR 8794 · KN35011N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7793 · HR 8765 · HR 7000 · HR 80136 · HR 80320 · HR 8301 · HR 7144 · HR 7088

Fitted to (14)

PHILIPS 21 PT 5407 · PHILIPS 21 PT 5407/01 · PHILIPS 21 PT 5408 · PHILIPS 21 PT 5408/01 · PHILIPS 21 PT 5458 · PHILIPS 21 PT 5458/01 · PHILIPS 21 PT 5507 · PHILIPS 21 PT 5507/01 · PHILIPS 21 PT 5518 · PHILIPS CHASIS L 01.1 21 · PHILIPS CHASIS L 01.1 E · PHILIPS CHASIS L 01.1 E AB · PHILIPS CHASIS L 04 E AA · PHONOLA CHASIS L 01.1 E AB
