HR 80136

21 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

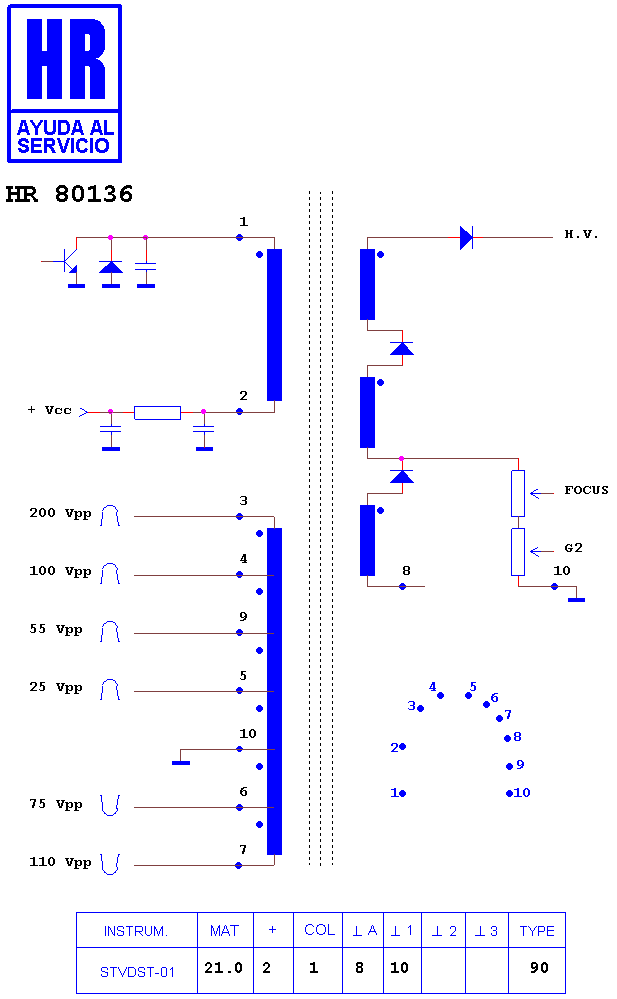

Schematic diagram for HR 80136
schematic (archived)

Manufacturer equivalents (5)

242253100055 · 53100055 · F05A.0005 · HR 80136 · JF0501-8605

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7000 · HR 8794 · HR 8765 · HR 8274 · HR 7793 · HR 80320 · HR 7088 · HR 7498 · HR 7144 · HR 7904 · HR 7400 · HR 7092

Fitted to (1)

PHILIPS CHASIS L 04
