HR 7000

22.8 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

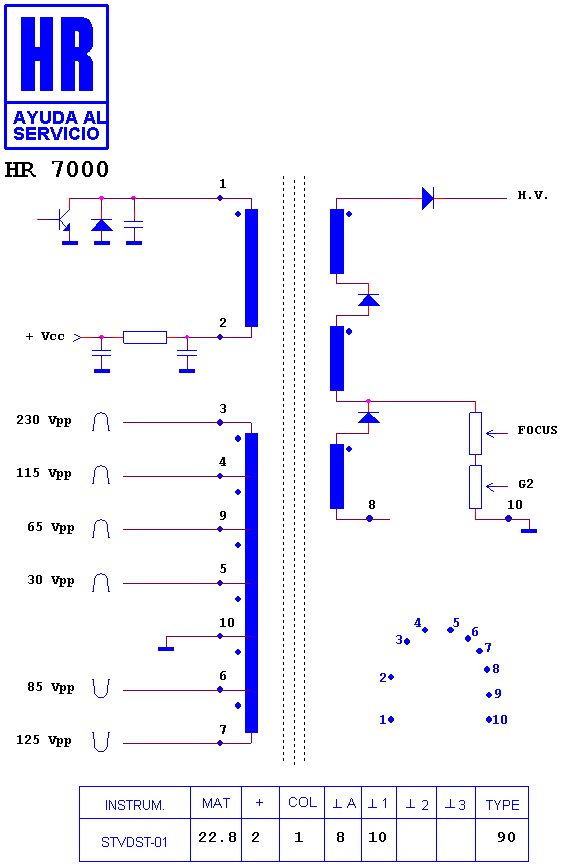

Schematic diagram for HR 7000 — schematic (archived)

Manufacturer equivalents (4)

13821401 · 312813821401 · AT2078/21401 · OV2076/21401

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8794 · HR 7793 · HR 8274 · HR 80136 · HR 8765 · HR 80320 · HR 8301 · HR 6254 · HR 7088 · HR 7498 · HR 7904 · HR 7400

Search this part in the full database
