HR 7008

type ST · family 1NP1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 280 g

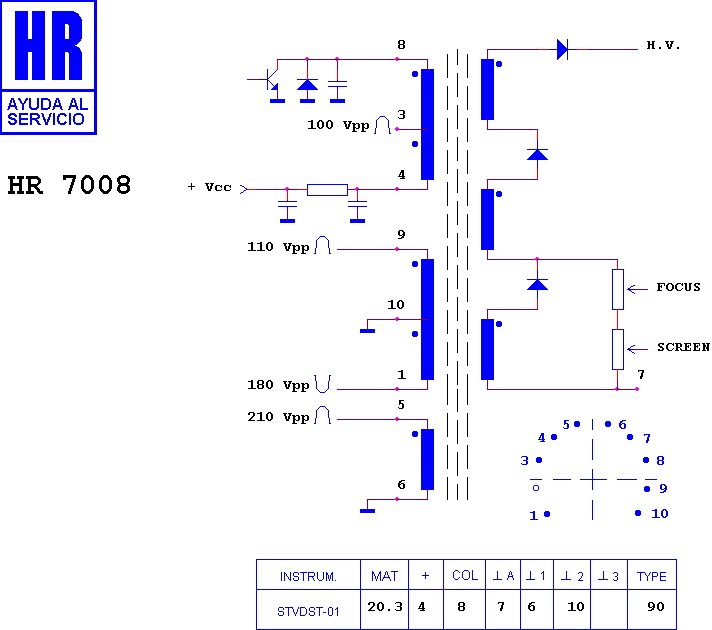

Schematic diagram for HR 7008
schematic

Manufacturer equivalents (8)

32004.00 · 32004.01 · 32004.02 · 32004.03 · 32304.00 · 32304.01 · 84230213 · HR 7008

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7730 · HR 7817 · HR 7816 · HR 7832 · HR 8898 · HR 8568 · HR 7464 · HR 7918 · HR 8472 · HR 7200 · HR 7439 · HR 7797

Fitted to (4)

NORDMENDE CHASIS ICC 3 B · SABA CHASIS ICC 3 B · SABA S 14-1 B · THOMSON CHASIS ICC 3 B
