HR 8660

24.8 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

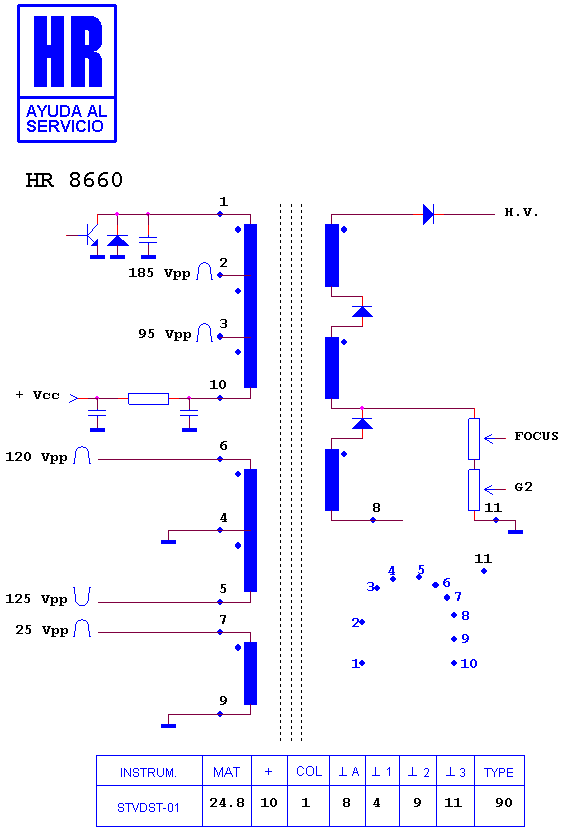

Schematic diagram for HR 8660 — schematic (archived)

Manufacturer equivalents (3)

1142.5052 · 242253102198 · 53102198

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7662 · HR 8452 · HR 7439 · HR 7797 · HR 7829 · HR 7726 · HR 8088 · HR 8472 · HR 7938 · HR 7952 · HR 7978 · HR 7960
