HR 7200

type ST · family 1AP1 · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

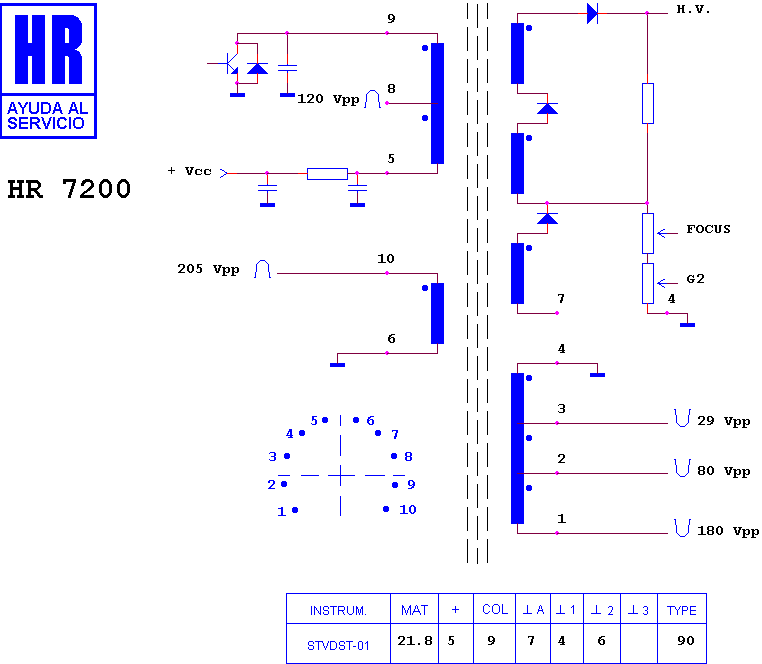

Schematic diagram for HR 7200
schematic

Manufacturer equivalents (5)

32016.00 · 32345.00 · 32345.50 · 472467.00 · 534 TX 0175

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7868 · HR 6474 · HR 7797 · HR 8605 · HR 8898 · HR 6357 · HR 7829 · HR 7439 · HR 7726 · HR 7264 · HR 7816 · HR 8472
