HR 7757

type ST · family 1VP · 17.5 kV maximum anode voltage · 90° deflection · 4 windings · 374 g

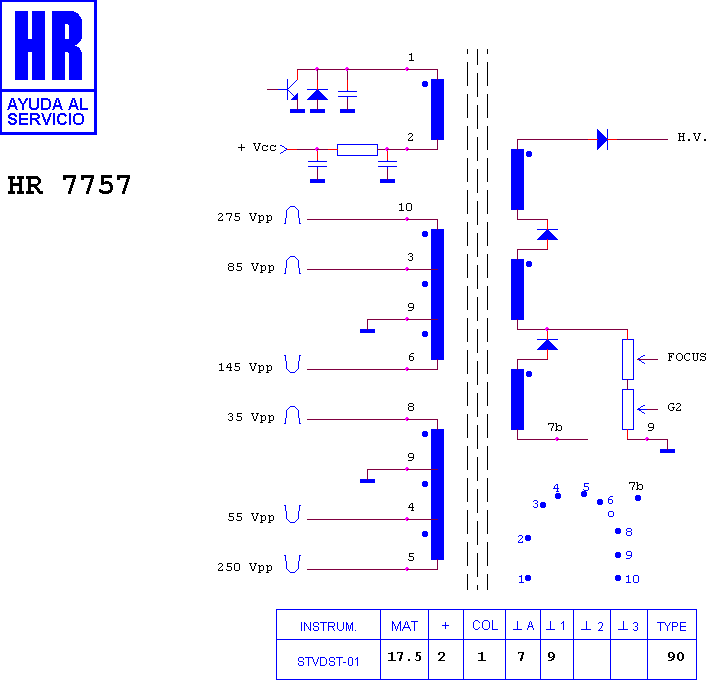

Schematic diagram for HR 7757
schematic

Manufacturer equivalents (7)

2434381 · 2434382 · 2434401 · 2434402 · 434381 · 434402 · SP 133

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7621 · HR 7868 · HR 8500 · HR 7749 · HR 8092 · HR 7272 · HR 7481
