HR 8500

type ST · family 1XP1 · 17.9 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

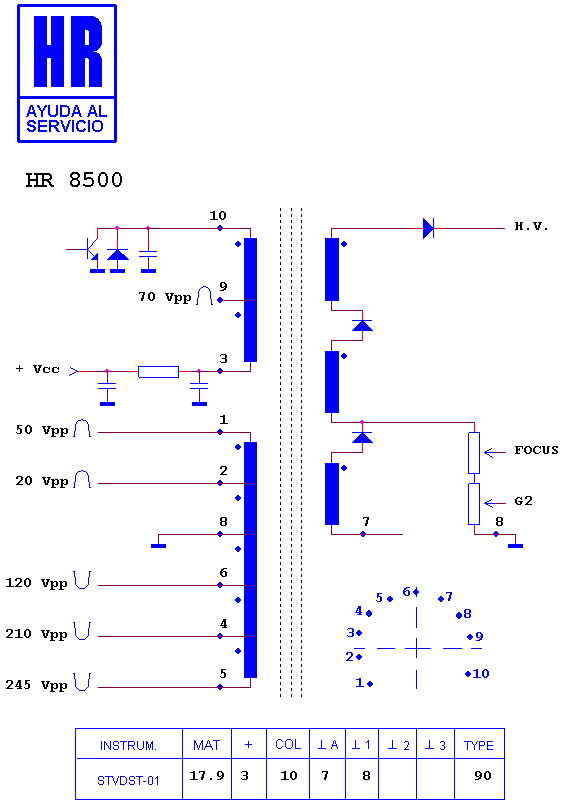

Schematic diagram for HR 8500 — schematic

Manufacturer equivalents (1)

154 146 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7621 · HR 7467 · HR 6558 · HR 8958 · HR 7172 · HR 7757
