HR 7958

type ST · family 1XP1 · 19.3 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

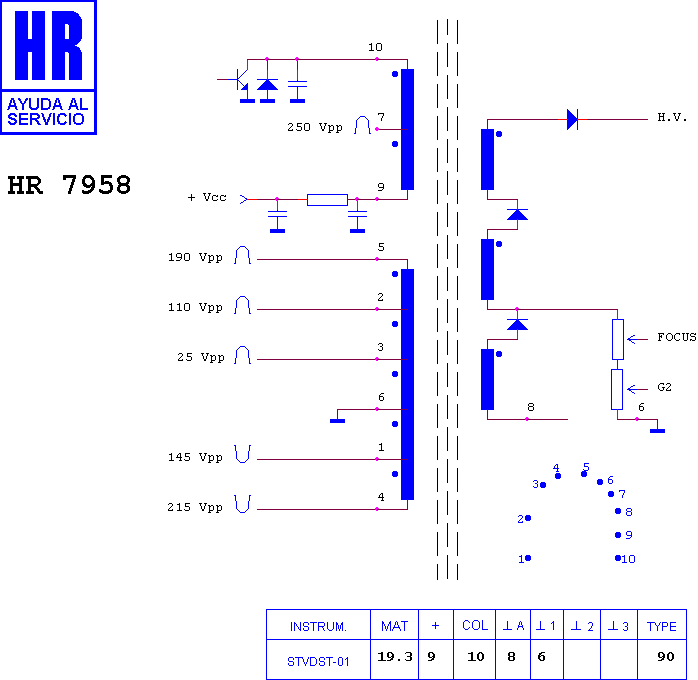

Schematic diagram for HR 7958
schematic

Manufacturer equivalents (1)

FCM 2012 L 02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7787 · HR 7204 · HR 7477 · HR 7254 · HR 7930 · HR 8895 · HR 6255 · HR 7041 · HR 7890 · HR 6021 · HR 7710 · HR 5741

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (17)

AKAI CHASIS P 88 MT · AKAI CT 2179 I · INNO-HIT 921 DITX · INNO-HIT 921 TX · INNO-HIT CB 538 WT/DITX · INNO-HIT CHASIS P 88 MT · INNO-HIT TVC 921 TX · SAMSUNG CB 5312 · SAMSUNG CB 5312 CB · SAMSUNG CB 5312 W/DITX · SAMSUNG CB 534 VT · SAMSUNG CB 538 · SAMSUNG CB 538 WT/DITX · SAMSUNG CHASIS MTT S 2 · SAMSUNG CHASIS P 88 MT · SAMSUNG CX 534 VT · SAMSUNG CX 558 W
