HR 8895

23.4 kV maximum anode voltage · 90° deflection · 4 windings · 256 g

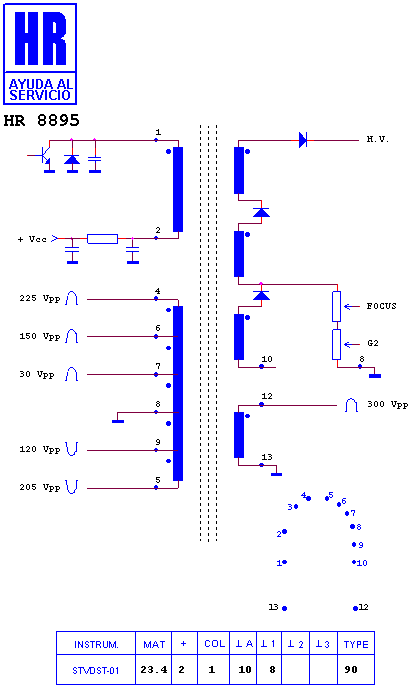

Schematic diagram for HR 8895
schematic (archived)

Manufacturer equivalents (13)

F0058CE · F0058PE · F0058PE-M · F0059CE · F0059PE · F0059PE-M · F1245CE · MSH-1FBA01 · RTRNF0058CEZZ · RTRNF0058PEZZ · RTRNF0059CEZZ · RTRNF0059PEZZ · RTRNF1245CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7654 · HR 5736 · HR 7930 · HR 5732 · HR 6070 · HR 5728 · HR 6021 · HR 7958 · HR 7041 · HR 7618 · HR 6103 · HR 6255

Fitted to (12)

MITSUBISHI CS 2020 R · MITSUBISHI CS 20203 · SHARP 14 MF 100 · SHARP 19 C-M 100 R · SHARP 19 CM 100 R · SHARP 19 E-M 50 · SHARP 19 EM 50 · SHARP 20 G 782 · SHARP 20 G 892 · SHARP 20 HM 60 S · SHARP 207 M 100 · SHARP JSJ 12674
