HR 8836

25.3 kV maximum anode voltage · H° deflection · 4 windings · 410 g

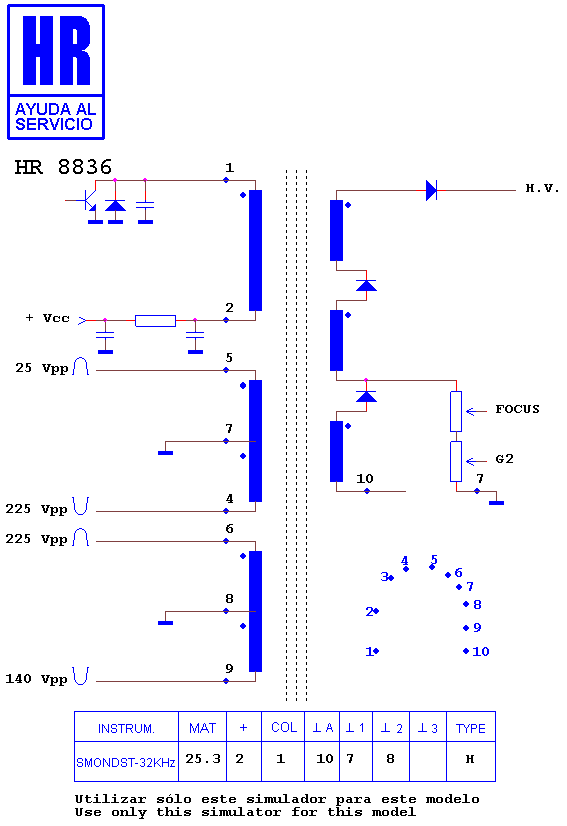

Schematic diagram for HR 8836
schematic (archived)

Manufacturer equivalents (2)

KFT2AB281F · KFT2AB281F1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8750 · HR 80202 · HR 7374

Fitted to (2)

PANASONIC - MATSUSHITA TC 14 A 10 · PANASONIC - MATSUSHITA TC 14 B 10 P
