HR 8878

40.8 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

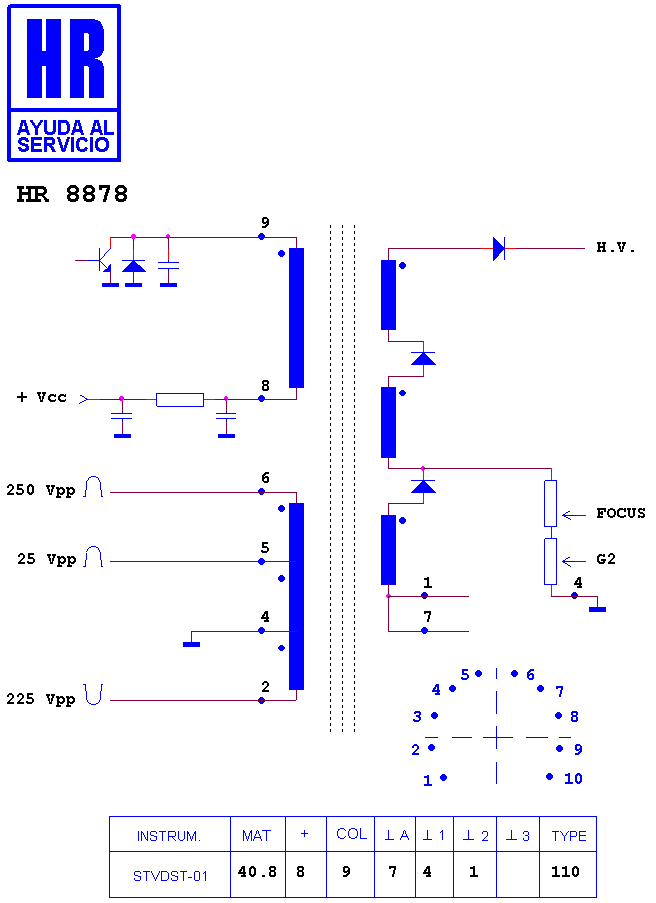

Schematic diagram for HR 8878
schematic (archived)

Manufacturer equivalents (7)

1352.3034 · 1352.3034A · 1352.3034D · 29201.665.11 · 29201.665.1103 · 29221.665.1103 · HR 8878

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8970 · HR 8919 · HR 5721 · HR 8776 · HR 8009 · HR 7389 · HR 5809 · HR 6728 · HR 7214 · HR 7225 · HR 6229 · HR 5808

Fitted to (10)

GRUNDIG 55-4105 MVW · GRUNDIG 55-839/8 DOLBY · GRUNDIG 55-854/8 DOLBY · GRUNDIG CHASIS CUC 2121 M · GRUNDIG DAVIO 55 ST · GRUNDIG DAVIO 55 ST · GRUNDIG ST 55-4105 MVW · GRUNDIG ST 55-839/8 DOLBY · GRUNDIG ST 55-854/8 DOLBY · GRUNDIG SUPER COLOR ST
