HR 6229

type ST · family 1BP1 · 22.5 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

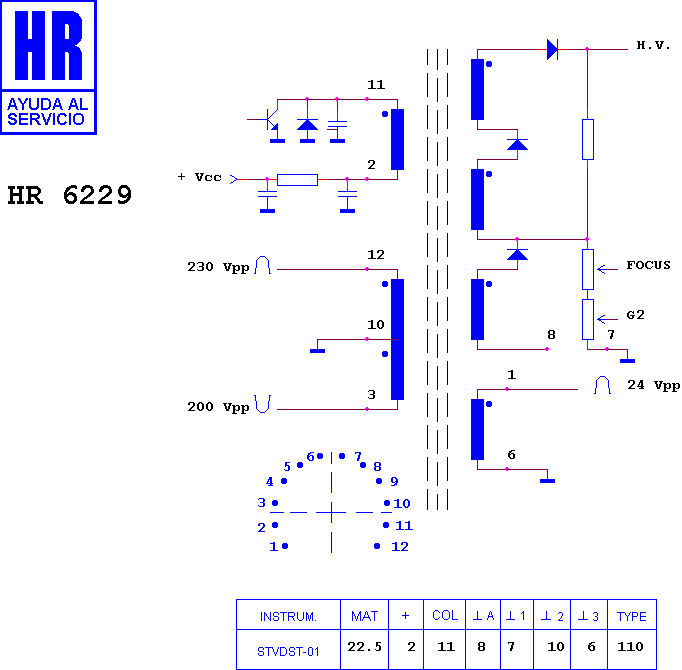

Schematic diagram for HR 6229
schematic

Manufacturer equivalents (6)

1182.5026 · 37.841 · 37382.00 · 37382.01 · 37382.02 · HR 6229

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6258 · HR 6559 · HR 6728 · HR 5809 · HR 7389 · HR 8919 · HR 7214 · HR 7225 · HR 8878 · HR 8009 · HR 8970 · HR 8238

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

ELBE 2593 MD · ELBE CHASIS E 14 · ELBE TVC 2593 MD
