HR 8970

40.5 kV maximum anode voltage · 110° deflection · 3 windings · 347 g

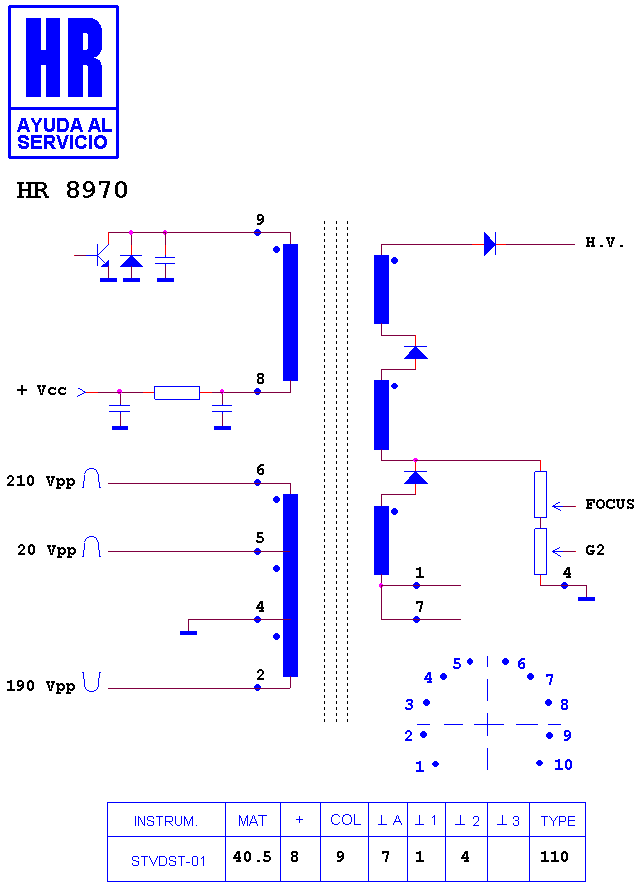

Schematic diagram for HR 8970
schematic (archived)

Manufacturer equivalents (9)

003311009 · 1352.3049 · 1352.3049A · 29201.665.13 · 29201.665.1301 · 29221.665.13 · 29221.665.1301 · HR 8970 · M 12-160

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8878 · HR 8919 · HR 5721 · HR 6728 · HR 8009 · HR 7389 · HR 5808 · HR 7214 · HR 7225 · HR 6229 · HR 6258 · HR 8238
