HR 8060

type ST · family 1ACP · 32.1 kV maximum anode voltage · 110° deflection · 3 windings · 434 g

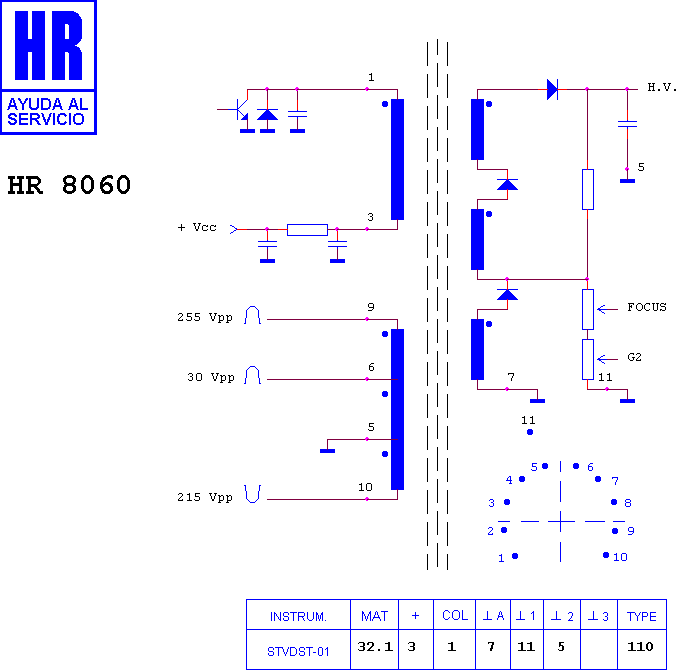

Schematic diagram for HR 8060
schematic

Manufacturer equivalents (12)

1142.0985 · 1182.0985 · 25186014 · 31100020 · 31100090 · 4-020-002 · 531100020 · 531100090 · JT 168 · S 31100020 · S 31100090 · S 32200020

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8776 · HR 7389 · HR 8919 · HR 7835 · HR 8878 · HR 8009 · HR 8970 · HR 7344 · HR 8011 · HR 6728 · HR 5809 · HR 6559

Fitted to (2)

FRABA CHASIS SHP 210 · PRO.EL CRISTINA
