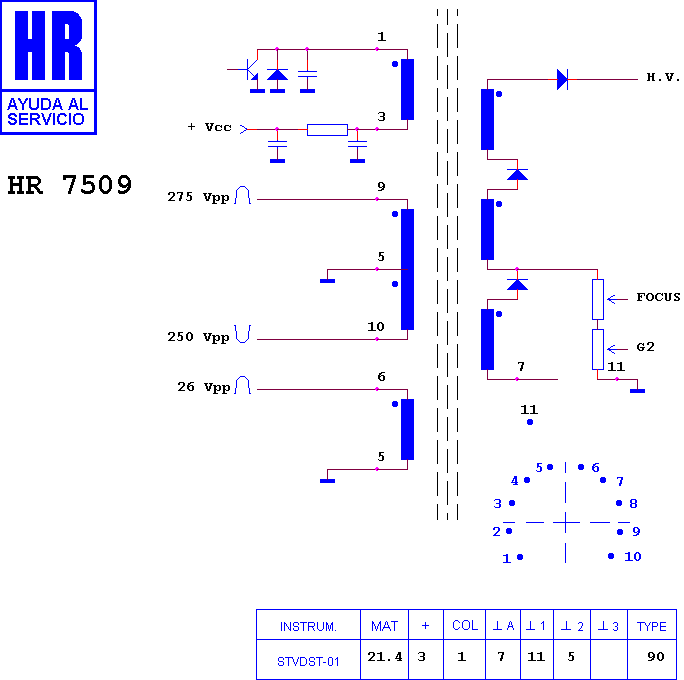

HR 7509

type ST · family 1NP · 21.4 kV maximum anode voltage · 90° deflection · 4 windings · 263 g

Manufacturer equivalents (1)

HR 7509

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7508 · HR 8661 · HR 7941 · HR 7914 · HR 7159 · HR 6279 · HR 7560 · HR 6258 · HR 80220 · HR 6588 · HR 8378 · HR 8000

Search this part in the full database
