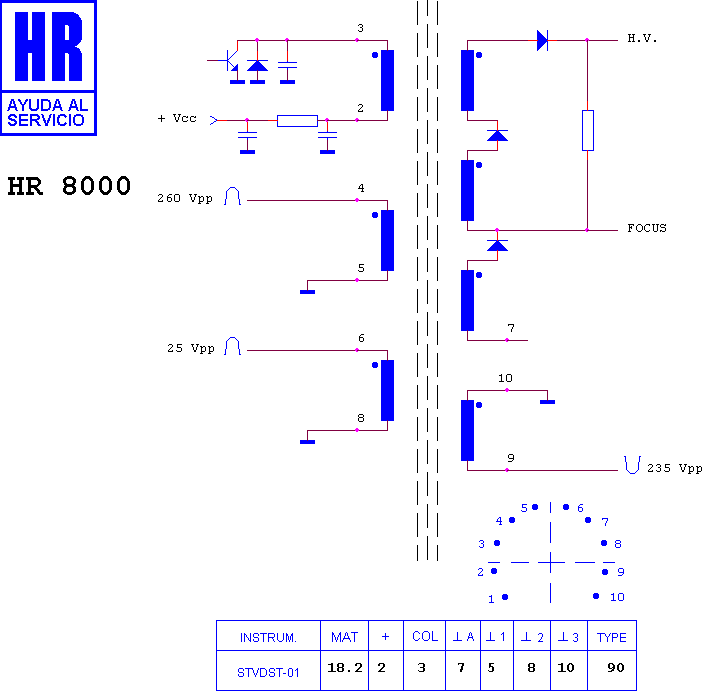

HR 8000

type ST · family 1AS1 · 18.2 kV maximum anode voltage · 90° deflection · 5 windings · 346 g

Manufacturer equivalents (2)

4536 00 02 · M 10-13

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7508 · HR 7509 · HR 7230 · HR 8661 · HR 7941 · HR 7159 · HR 7914 · HR 7560 · HR 80292 · HR 6279 · HR 6258 · HR 80220

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control

Fitted to (1)

NOKIA - ITT 4229
