HR 7900

type ST · family 1XP1 · 20 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

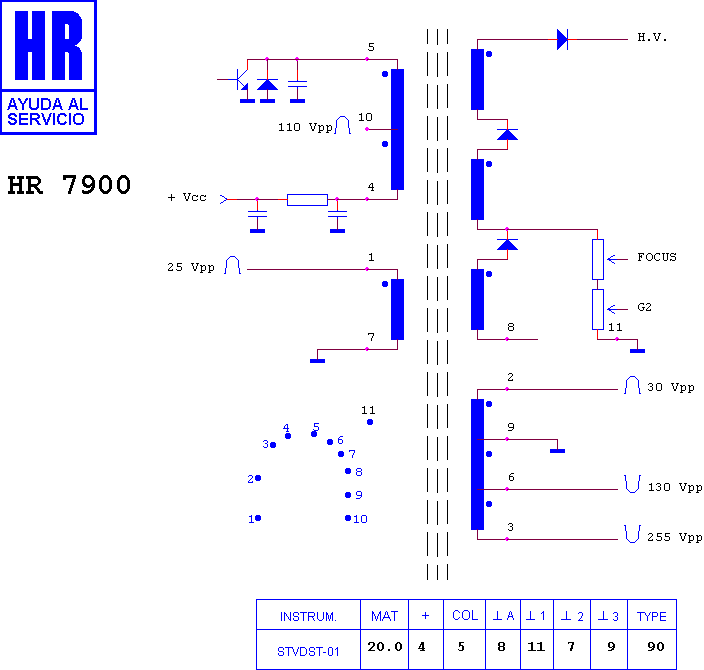

Schematic diagram for HR 7900
schematic

Manufacturer equivalents (10)

001-220002-04 · 001-220004-03 · 101-220002-03 · 101-220002-04 · 101-220003-03 · 101-220004-03 · AFS 291 · CF 83 · LCE CF 83 · ME/6440-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8394 · HR 7589 · HR 7295 · HR 7604 · HR 7586 · HR 6571 · HR 80023 · HR 6028 · HR 7507 · HR 7443 · HR 7446 · HR 6573

Fitted to (12)

ALBA 2157 NTX · ALBA CTV 14 R · ALBA K 3720 R · ALBA SEG K 3720 R · BUSH-MURPHY-RANK 2057 NTX · BUSH-MURPHY-RANK 2157 NTX · KINGLEY 14" · NIKKAI TLG 14 · NIKKAI TLG 14 R · SEG K 3720 R · SOLAVOX CML 14 R · TASHIKO 14 E 881
