HR 7139

27.3 kV maximum anode voltage · H° deflection · 3 windings · 320 g

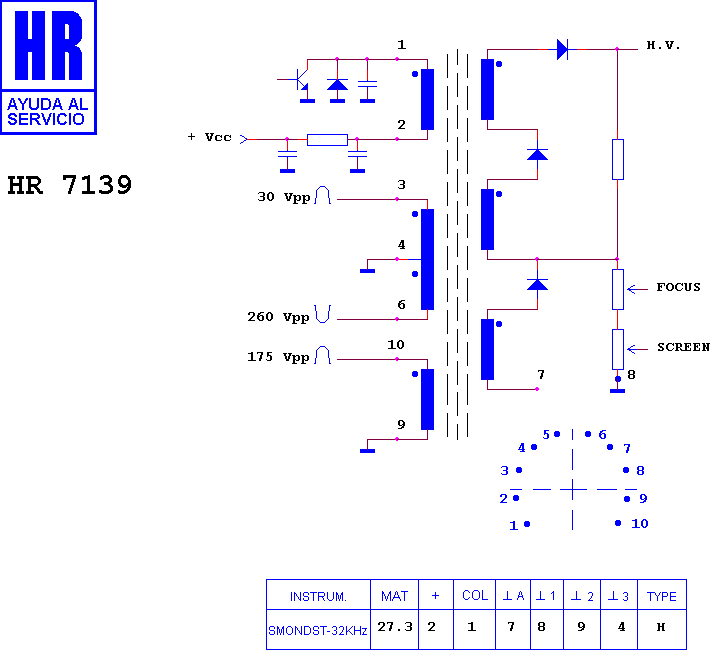

Schematic diagram for HR 7139
schematic
Schematic diagram for HR 7139
schematic (archived)

Manufacturer equivalents (1)

HFT84770

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46167 · HR 46231 · HR 5721 · HR 8068 · HR 8385

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
