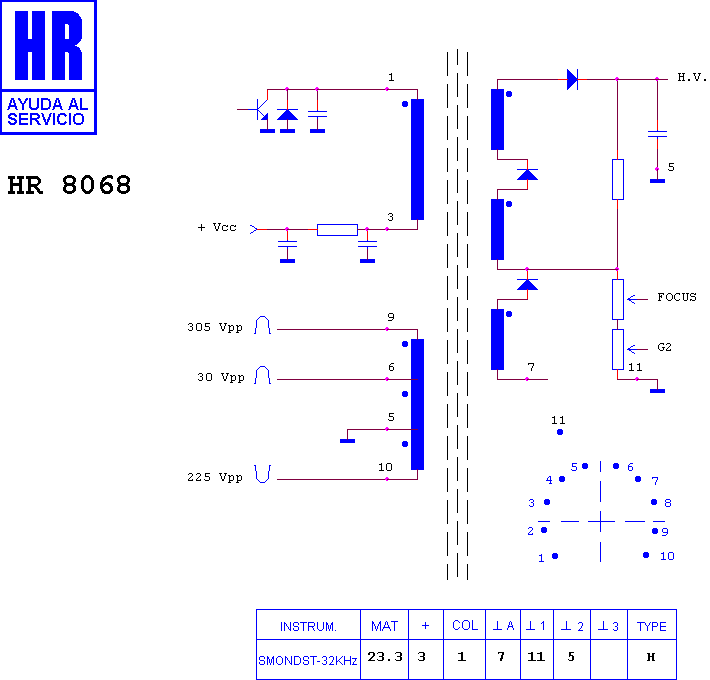

HR 8068

type SM · family 1ACP · 23.3 kV maximum anode voltage · H° deflection · 3 windings · 464 g

Manufacturer equivalents (2)

1242.0358 · 28020150

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46231 · HR 7139

Fitted to (2)

HANTAREX MONITOR · HANTAREX POLO 2-34

Search this part in the full database
