HR 6218

type ST · family 1IP · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 443 g

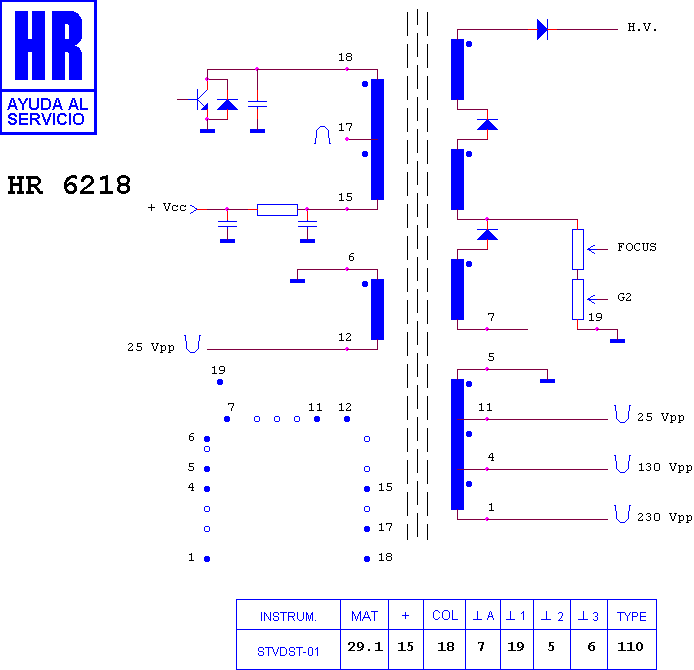

Schematic diagram for HR 6218
schematic

Manufacturer equivalents (17)

140 17031 · 140 17047 · 3122 138 38330 · 3122 138 38331 · 3122 138 38332 · 3122 138 38333 · 38330 · 38331 · 38332 · 38333 · 38334 · 38335 · 4806 140 17031 · 4806 140 17047 · AT 2077/50 · AT 2077/S0 · FAT30274

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6499 · HR 8474 · HR 8577 · HR 6176 · HR 8673 · HR 8929 · HR 7295 · HR 5804 · HR 6676 · HR 8905 · HR 7369 · HR 8444

Fitted to (5)

PHILIPS 25 GR 7580 · PHILIPS 25 GR 7680 · PHILIPS 28 GR 7580 · PHILIPS 28 GR 7680 · PHILIPS CHASIS GR 1 CL
