HR 7465

type ST · family 1XP1 · 26.4 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

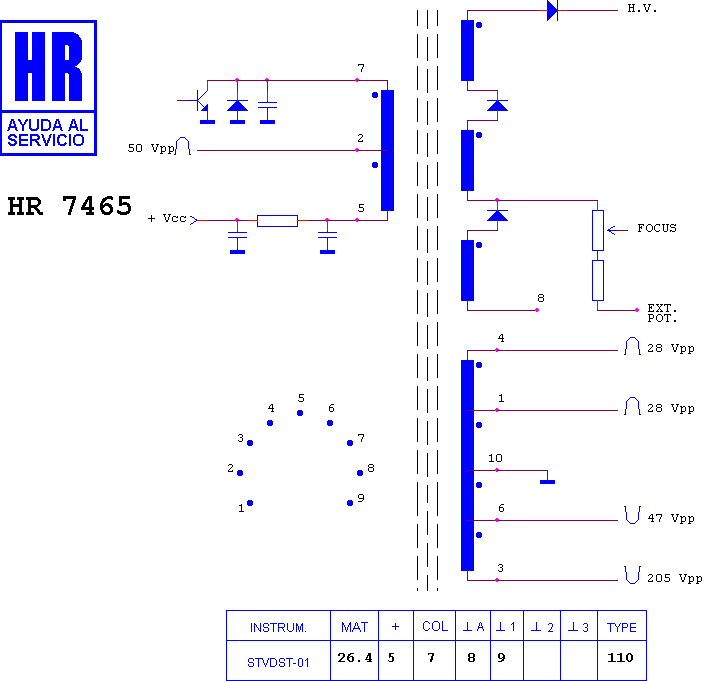

Schematic diagram for HR 7465
schematic

Manufacturer equivalents (6)

EW 77 X 006 · EW 77 X 6 · TLF 14617 · TLF 14617 B · TLF 14617 F · TLF14617F1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8046 · HR 8604 · HR 6514 · HR 7632 · HR 7625 · HR 6534 · HR 6511 · HR 6568 · HR 46262 · HR 7436 · HR 8832 · HR 7363

Fitted to (2)

PANASONIC - MATSUSHITA CHASIS NMX-GL · PANASONIC - MATSUSHITA CT 3020 A
