HR 6634

type ST · family 1BP1 · 27 kV maximum anode voltage · 110° deflection · 3 windings · 425 g

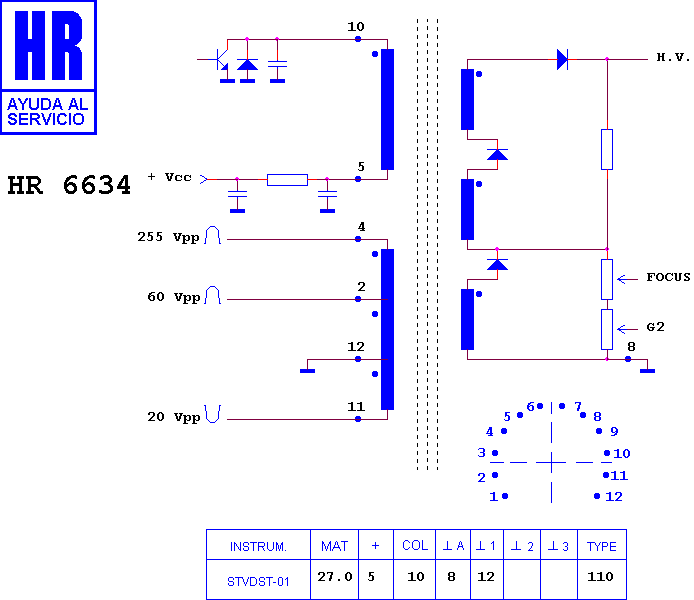

Schematic diagram for HR 6634
schematic

Manufacturer equivalents (13)

1172.0207 · 1182.0097 · 1182.0217 · 1182.0217E · 7445520 · 744552X · 7445570 · 744557X · FAT30447 · G4332-03 · HR 6634 · KN30447 · ME/6319-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6185 · HR 7689 · HR 7277 · HR 8604 · HR 8055 · HR 7263 · HR 6465

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

EUROPHON CHASIS 110§ · EUROPHON MST 1000 · EUROPHON MST 2000 · EUROPHON MTS 1000 · EUROPHON MTS 2000 · TENSAI 251 BL · TENSAI TCP 251 BL · TENSAI TCP 255 BL · TENSAI TCT 251 BL
