HR 8034

type SM · family 1AP2 · 29.9 kV maximum anode voltage · H° deflection · 4 windings · 324 g

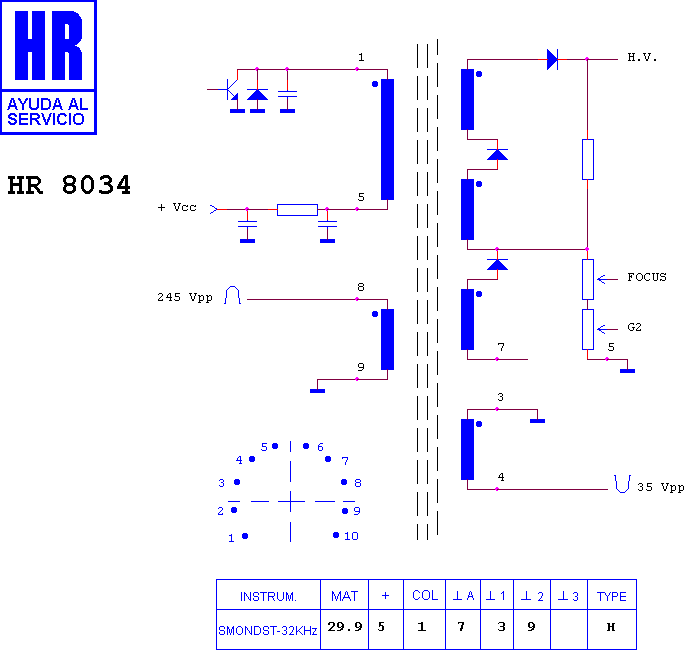

Schematic diagram for HR 8034
schematic

Manufacturer equivalents (4)

1105.0338 · 28024241 · 28024540 · 28024541

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46168 · HR 46199 · HR 46192 · HR 8224

Fitted to (4)

HANTAREX 10" IN FLIGHT · HANTAREX MONITOR · OLIVETTI 10" IN FLIGHT · OLIVETTI MONITOR
