HR 46199

type SM · family 1WD · 37.8 kV maximum anode voltage · H° deflection · 3 windings · 444 g

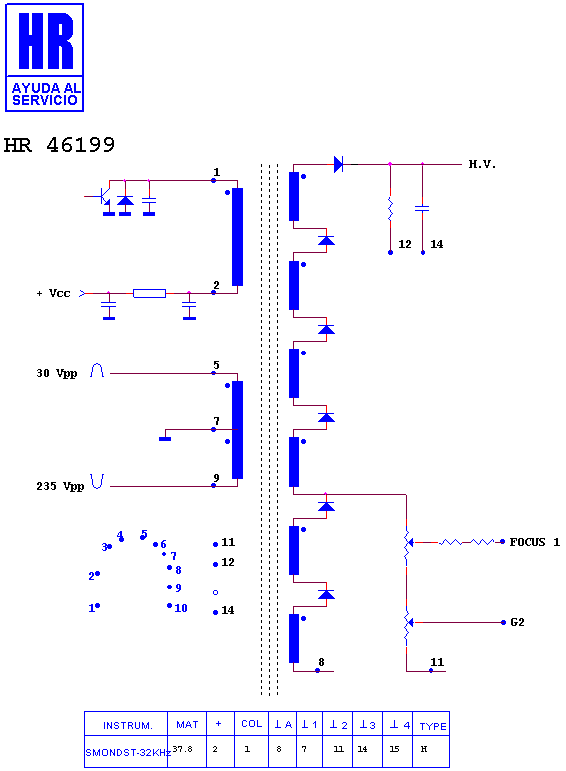

Schematic diagram for HR 46199
schematic

Manufacturer equivalents (2)

BH 26-10335 B · FKD 15 B 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46192 · HR 46168 · HR 8224 · HR 8034

Fitted to (5)

IBM 6546 · IBM 6546-0 BN · IBM 6546-2 BN · IBM G 54 · IBM MONITOR
