HR 8224

type SM · family 1XP1 · 41.4 kV maximum anode voltage · H° deflection · 3 windings · 290 g

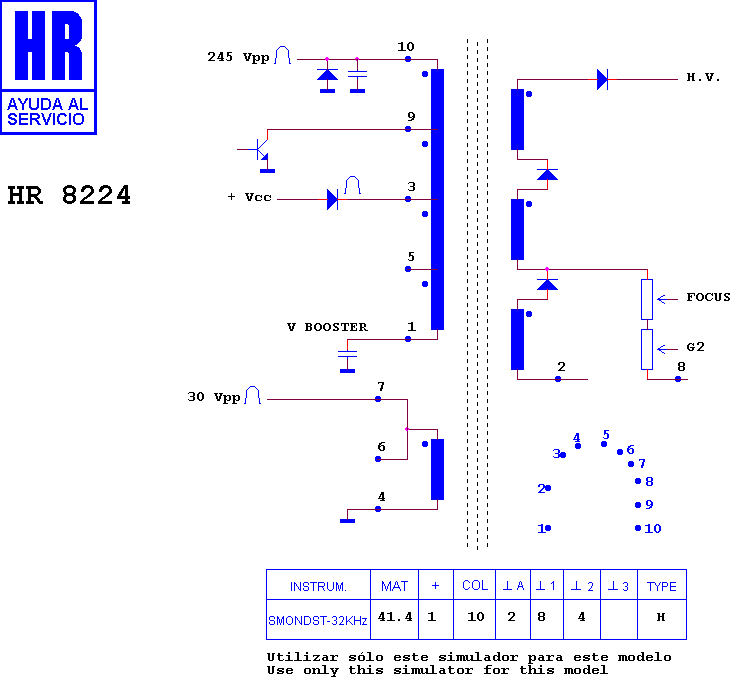

Schematic diagram for HR 8224
schematic

Manufacturer equivalents (6)

43-74-1003 · 43-74-1003 A · 43-74-1003 B · CFB 2-005 · CFB 2-005 A · CFB 2-005 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46168 · HR 46199 · HR 46192 · HR 8034

Fitted to (22)

AUDIOSONIC KRB 1576 F · GOODMANS CTV 310 U · INTERVISION CTV 260 RMPS · IRRADIO TVR 310 · IRRADIO XTC 1003 · IRRADIO XTC 1013 · IRRADIO XTC 1015 · LENCO TC 9112 · NOVA NTV 2011 MK · ROADSTAR CTV 1002 · ROADSTAR CTV 1061 · ROADSTAR CTV 1552 XL · ROADSTAR CTV 552 · ROADSTAR CTV 552 XK · ROADSTAR CTV 552 XL · ROADSTAR TLV 1061 · ROADSTAR TLV 1061 X · ROADSTAR TLV 1071 XL · SUPERTECH 2610 OMS · SUPERTECH CTV 2610 · SUPERTECH CTV 2610 M · SUPERTECH CTV 2610 OMS
