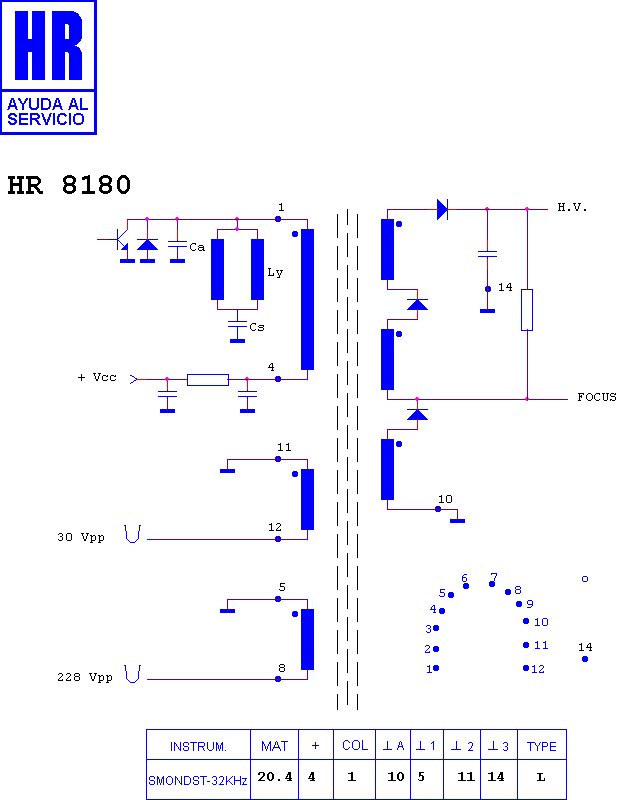

HR 8180

type SM · family 1WP1 · 20.4 kV maximum anode voltage · L° deflection · 6 windings · 461 g

Manufacturer equivalents (1)

HR 8180

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7942 · HR 46171 · HR 7342 · HR 46246 · HR 46198 · HR 46186

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Fitted to (2)

IBERO-SHON - IBEROPHON MONITOR BUS · IBERO-SHON - IBEROPHON MONITOR VIDEO
