HR 7651

type ST · family 1YP · 24.2 kV maximum anode voltage · 90° deflection · 4 windings · 400 g

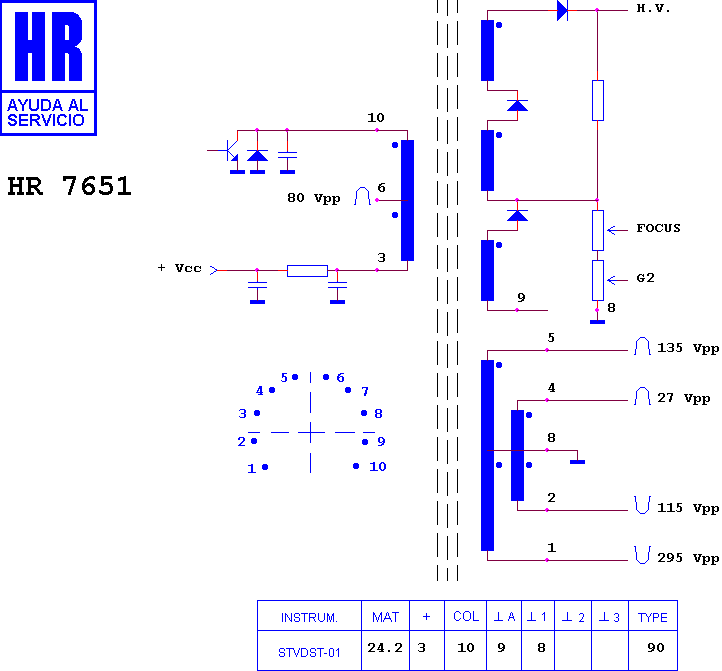

Schematic diagram for HR 7651
schematic

Manufacturer equivalents (7)

047 105 180 · 47105180 · 47105211 · BSC2410D · BSC25-1905K · FB2058 · TRNSFB2058

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7495 · HR 8848 · HR 7479 · HR 8345 · HR 7017 · HR 8667 · HR 6190 · HR 7779 · HR 8137

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (16)

BLAUPUNKT 1901 · BLAUPUNKT 1902 · BLAUPUNKT 5100 · BLAUPUNKT 5200 · NEC 21 C · NEC 22 C · NEC C 1817 · NEC C 1901 · NEC C 2026 · NEC C 2027 · NEC C 2062 · NEC C 2063 · NEC C 2071 · NEC SS 1901 · PHILCO 20 C 58 · PHILCO 20 C 58 CN
