HR 7379

type ST · family 1NP1 · 17.6 kV maximum anode voltage · 90° deflection · 4 windings · 248 g

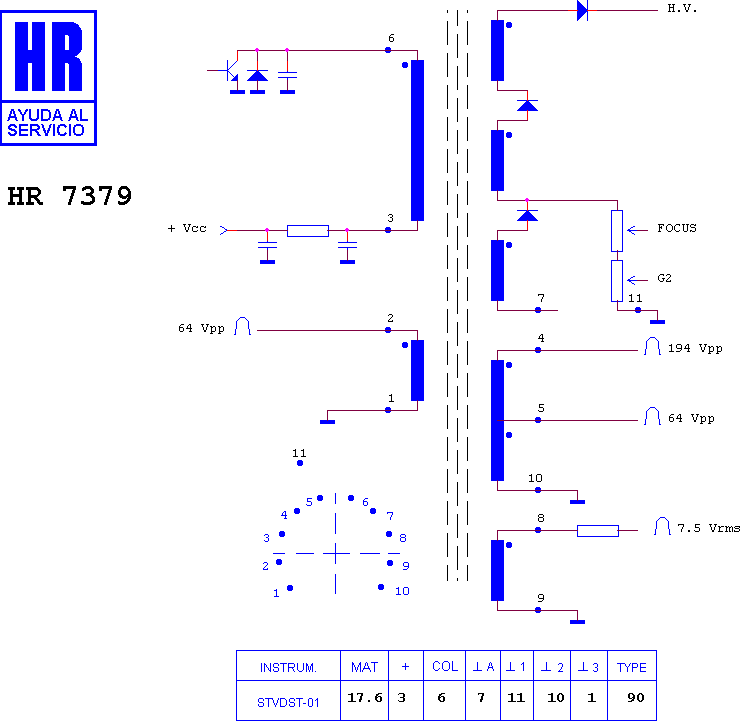

Schematic diagram for HR 7379
schematic

Manufacturer equivalents (6)

39L456AZT · 39L456CZT · ETF39L456AZT · ETF39L456CZT · HR 7379 · TBC000*077

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7751 · HR 7590 · HR 8300 · HR 8269 · HR 7261 · HR 6554 · HR 7667 · HR 8330 · HR 7520 · HR 8222 · HR 7473 · HR 8137
