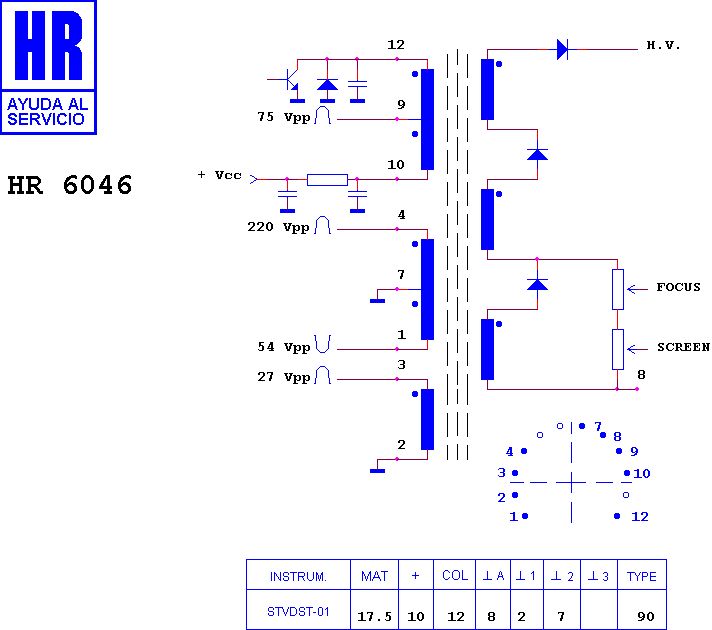

HR 6046

type ST · family 1BP1 · 17.5 kV maximum anode voltage · 90° deflection · 2 windings · 390 g

Manufacturer equivalents (1)

GTA 5029

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6554 · HR 7379 · HR 7495 · HR 8848 · HR 7520 · HR 8269 · HR 6295 · HR 8804 · HR 8145 · HR 8222 · HR 7554 · HR 6556

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

PIRAMID TVC 20"
