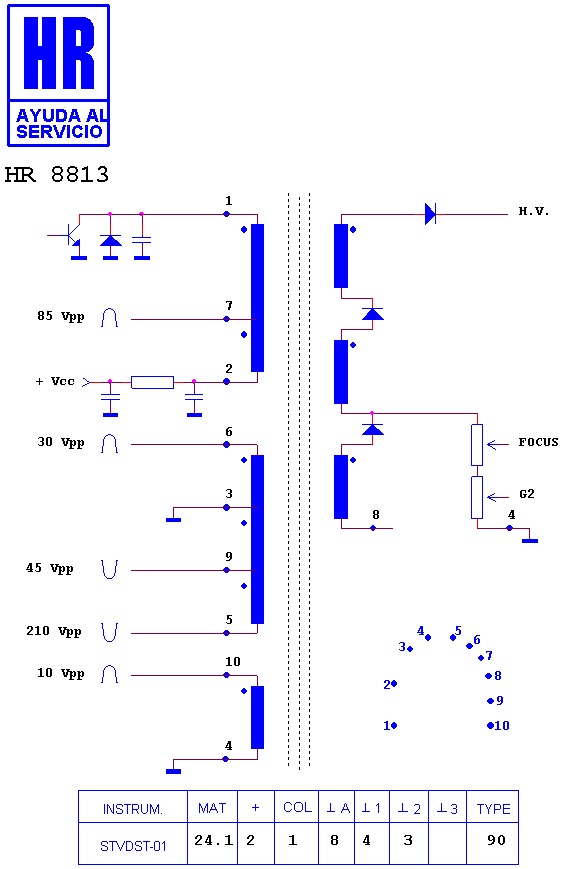

HR 8813

type ST · family 1XP1 · 24.1 kV maximum anode voltage · 90° deflection · 4 windings · 256 g

Manufacturer equivalents (2)

TLF 14749 F · TLF 14949 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8804 · HR 8130 · HR 8145 · HR 6556 · HR 8222 · HR 7967 · HR 6295 · HR 8097 · HR 8953 · HR 7554 · HR 8359 · HR 7738

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

NATIONAL 366 · NATIONAL CN 366 · NATIONAL TC 491 TR · PANASONIC - MATSUSHITA CN 366
