HR 80106

33 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

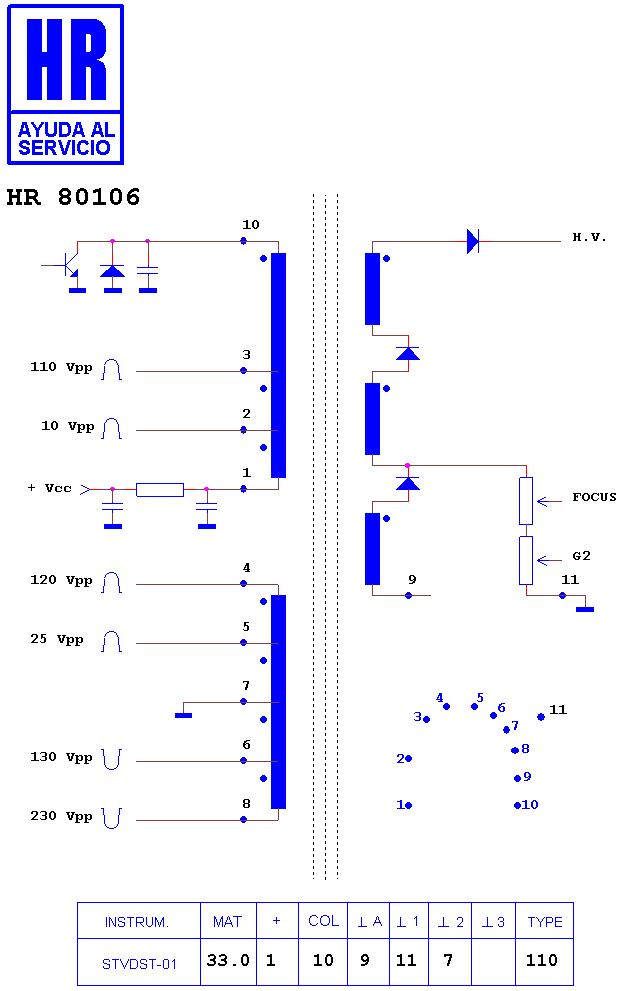

Schematic diagram for HR 80106 — schematic (archived)

Manufacturer equivalents (2)

3210009 · FTE09A008

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8864 · HR 8885 · HR 8867 · HR 80021 · HR 80122 · HR 8294 · HR 80057 · HR 8838 · HR 80091 · HR 8833 · HR 8251 · HR 8702
