HR 7953

20.6 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

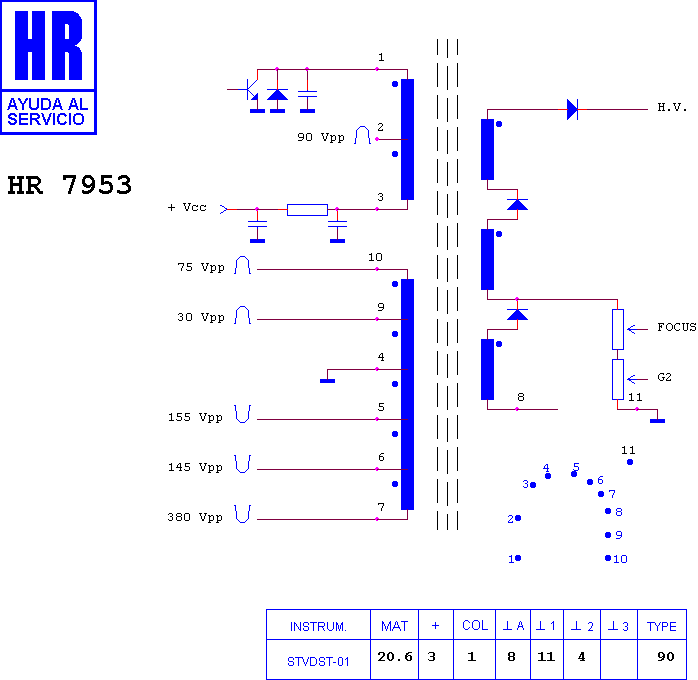

Schematic diagram for HR 7953
schematic
Schematic diagram for HR 7953
schematic (archived)

Manufacturer equivalents (1)

7953-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7945 · HR 7484 · HR 8277 · HR 7485 · HR 8163 · HR 7671 · HR 7897 · HR 8485 · HR 7707 · HR 7810 · HR 7216 · HR 7248

Fitted to (1)

GOLDI CHASIS 6 14/21

Search this part in the full database
