HR 7248

type ST · family 1NP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

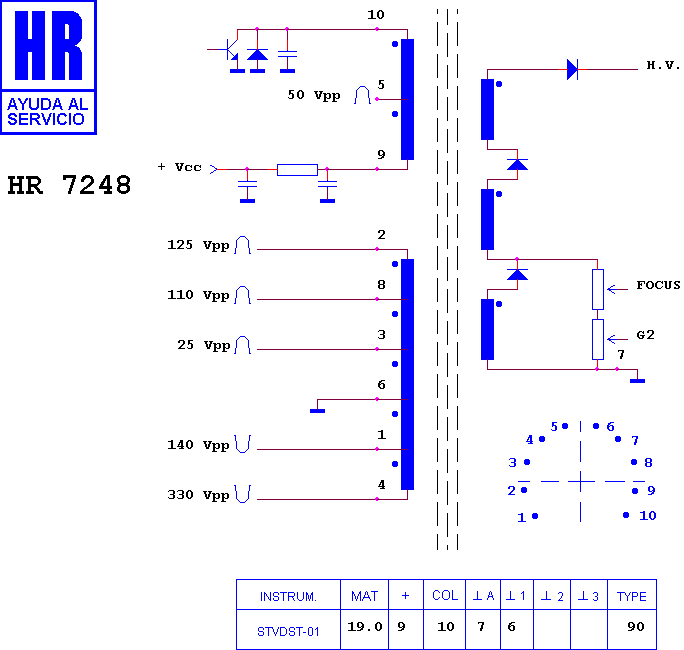

Schematic diagram for HR 7248
schematic

Manufacturer equivalents (2)

FCC 1415 DL · FCC 1415 JL

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8081 · HR 8485 · HR 7216 · HR 8077 · HR 7613 · HR 7953 · HR 8586

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
