HR 7216

type ST · family 1NP1 · 17.2 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

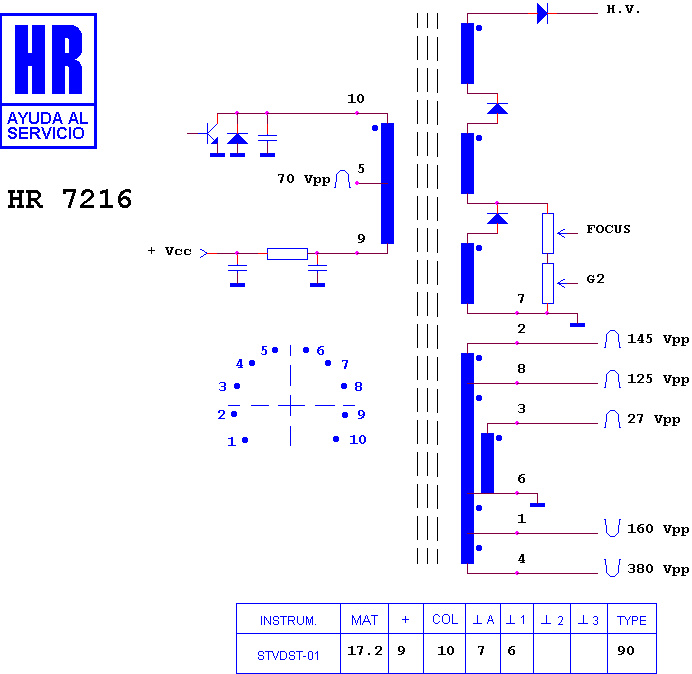

Schematic diagram for HR 7216
schematic

Manufacturer equivalents (1)

FCC 2015 JL

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7248 · HR 8485 · HR 8081 · HR 7613 · HR 7810 · HR 7953 · HR 8153 · HR 8077 · HR 8147

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TOSHIBA CJ 800
