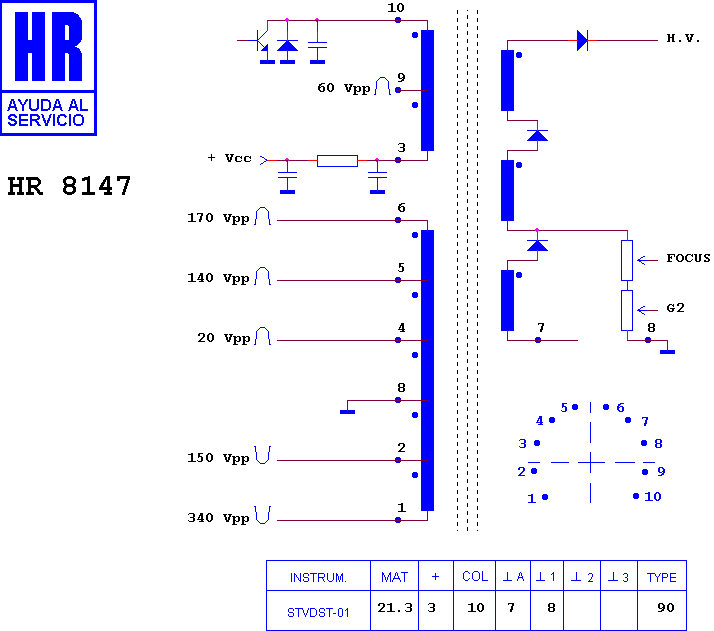

HR 8147

type ST · family 1XP1 · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

KFS 60229

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8153 · HR 7613 · HR 7216 · HR 8081

Fitted to (2)

PRIMA - PRIME XT 3701 B/G · PRIMA - PRIME XT 3702 B/G
