HR 8153

21.3 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

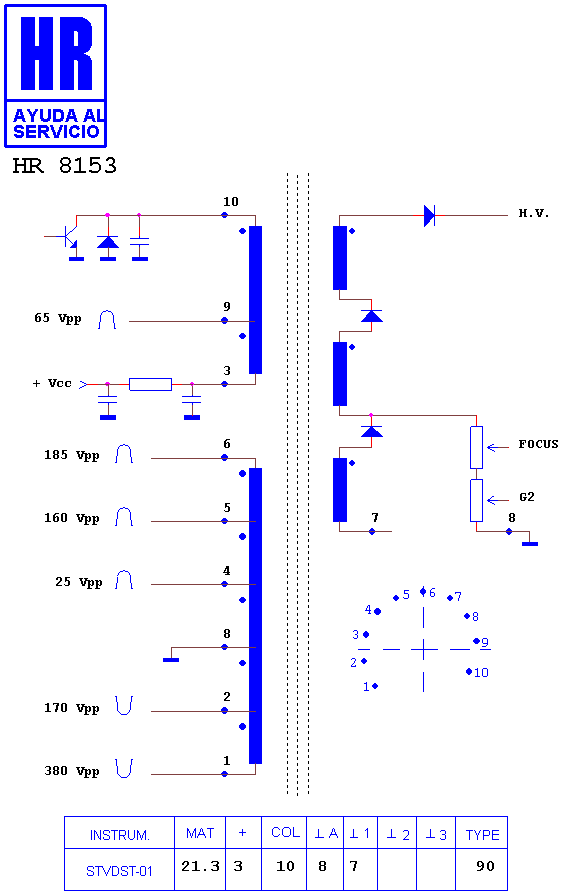

Schematic diagram for HR 8153 — schematic (archived)

Manufacturer equivalents (1)

KFS60299

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8147 · HR 8107 · HR 7613 · HR 7216

Search this part in the full database
