HR 8107

type ST · family 1XP1 · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

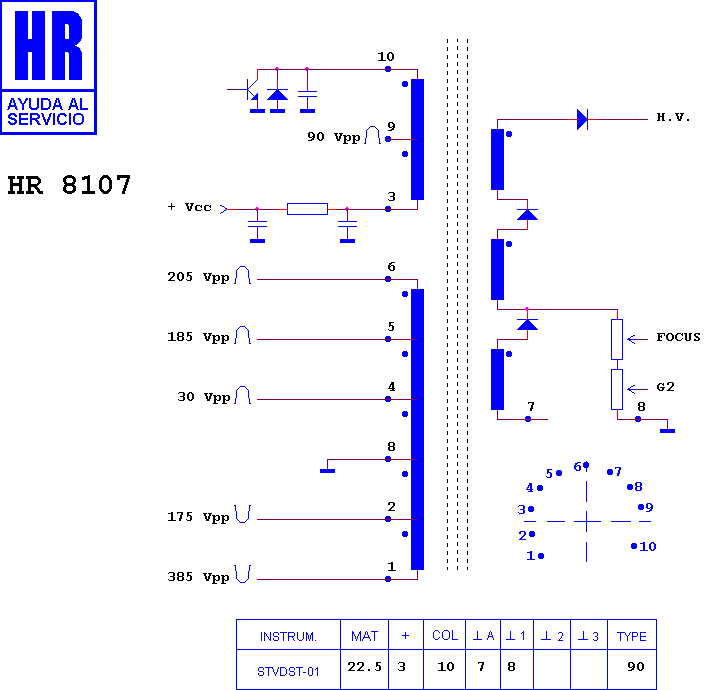

Schematic diagram for HR 8107
schematic

Manufacturer equivalents (7)

030010055 · 030240055 · 901025 · BSC 25 N 0401 · BSC23N0140 · FAT30343 · KN30343

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7810 · HR 8153 · HR 6261 · HR 7613 · HR 80062

Fitted to (7)

ANI CTV 20 · ANI M 510 · INTERBUY M 510 · INTERBUY M 510 PROFI HI-LINE · INTERBUY XTN 5103 · JVC ALA 110 BK · SAMSUNG XT 5103 P
