HR 7810

type ST · family 1XP1 · 26 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

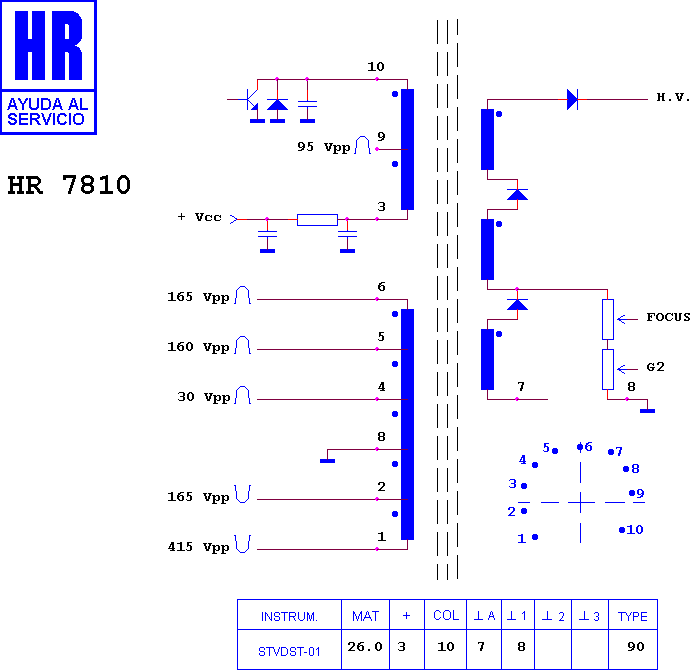

Schematic diagram for HR 7810
schematic

Manufacturer equivalents (7)

003281003 · 030240056 · 154 138 Q · 58-65145-01 · FAT30100 · KN30100 · ME/6459-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8107 · HR 7613 · HR 7216 · HR 7953 · HR 8485

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (12)

ANI M 530 · CONDOR CTV 5102 · CONTEC MFP 5398 · CONTEC MV 5198 · GENERAL GT 8844 · GIANT 51 CM · INTERBUY M 530 · INTERVISION CTV 5129 · INTERVISION CTV 5198 · PROFEX CTV 5191 DK · RADIOTONE CX 510 AV · RADIOTONE TV 510 AV
