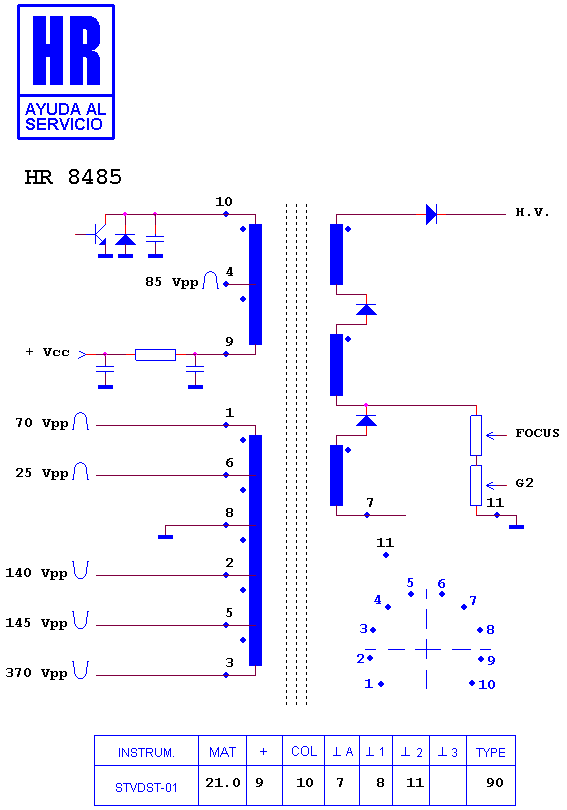

HR 8485

21 kV maximum anode voltage · 90° deflection · 3 windings · 248 g

Manufacturer equivalents (1)

8485-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7216 · HR 7248 · HR 7945 · HR 8277 · HR 7606 · HR 7810 · HR 7953 · HR 7897 · HR 7671

Fitted to (1)

GOLDI CHASIS GOLDIU 14/21
