HR 7606

type ST · family 1XP1 · 23.2 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

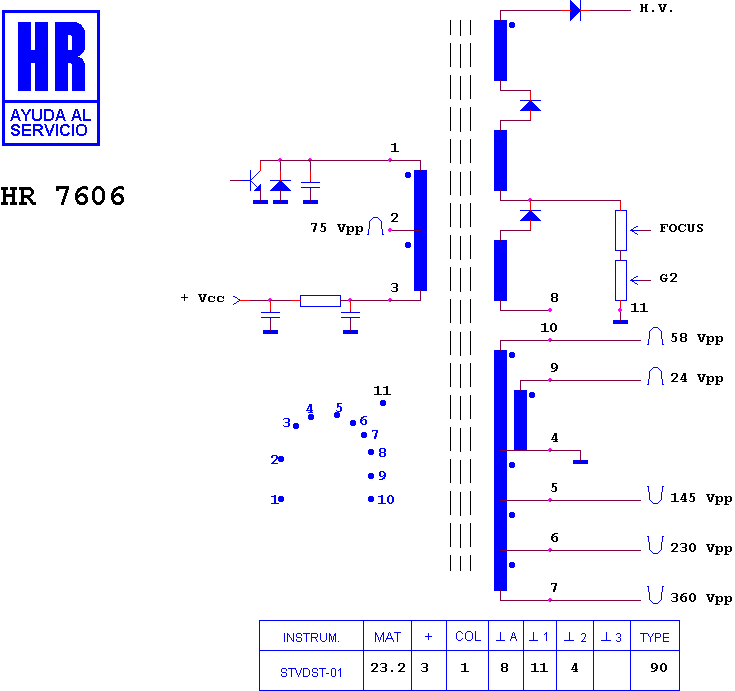

Schematic diagram for HR 7606
schematic

Manufacturer equivalents (2)

154 207 B · 154 207 N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8163 · HR 7485 · HR 7945 · HR 7897 · HR 8277 · HR 7671 · HR 7909 · HR 7707 · HR 7742 · HR 6075 · HR 8485

Fitted to (1)

HITACHI CPT 2020
