HR 7742

type ST · family 1XP · 18.2 kV maximum anode voltage · 90° deflection · 5 windings · 296 g

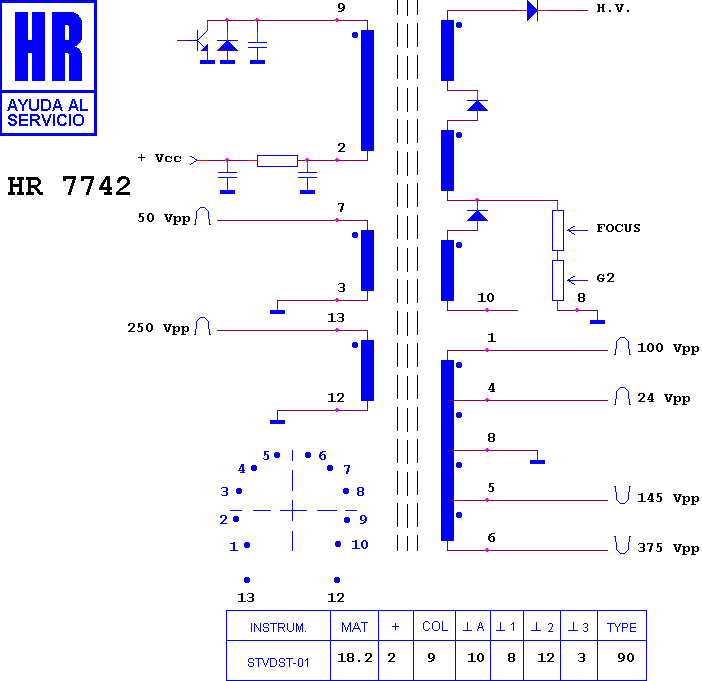

Schematic diagram for HR 7742
schematic

Manufacturer equivalents (11)

03214002 · 043214002 · 0432140021 · 2140021Q · 32114002 · 3214002 · 32140021 · 43214002 · 432140021 · DNF-FC 1432 · FC 1432

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7750 · HR 6075 · HR 7606 · HR 7909 · HR 8163 · HR 7945 · HR 7484 · HR 7485 · HR 7897 · HR 7707

Fitted to (2)

ALBA 3114 AT · OSAKI 3114 AT
