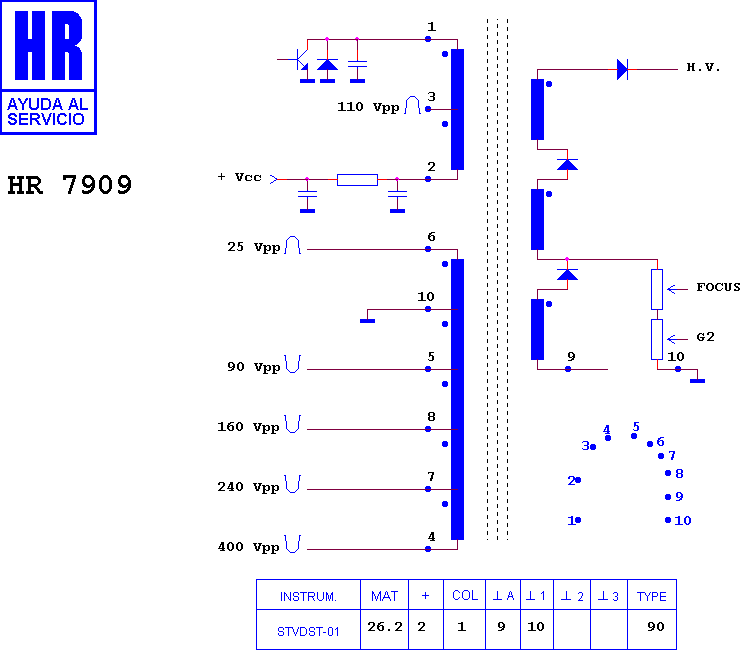

HR 7909

type ST · family 1YP · 26.2 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

CE 41286-A 0 A · CE 41286-AOA

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80062 · HR 7707 · HR 7897 · HR 8163 · HR 7485 · HR 8081 · HR 7731 · HR 7945 · HR 7484 · HR 7840 · HR 7742 · HR 7666

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
