HR 8235

4 windings

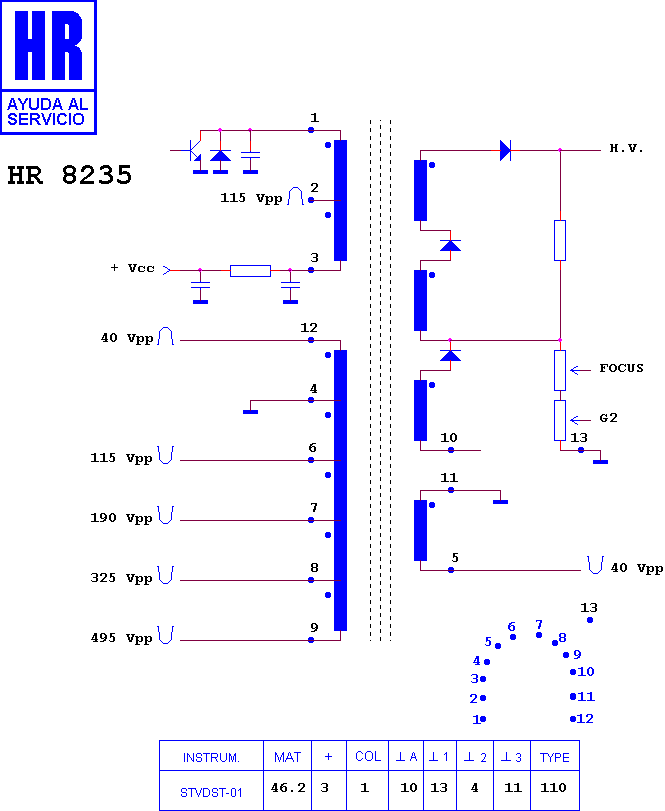

Schematic diagram for HR 8235
schematic

Manufacturer equivalents (9)

3122 268 31250 · 3122 268 31251 · 31250 · 31251 · 31252 · 31253 · 31254 · AT 2092/32 TB · AT2092/31251

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7909 · HR 6100

Fitted to (1)

OVP - ORAVA CTV 100 HZ
