HR 7840

type ST · family 1XP1 · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

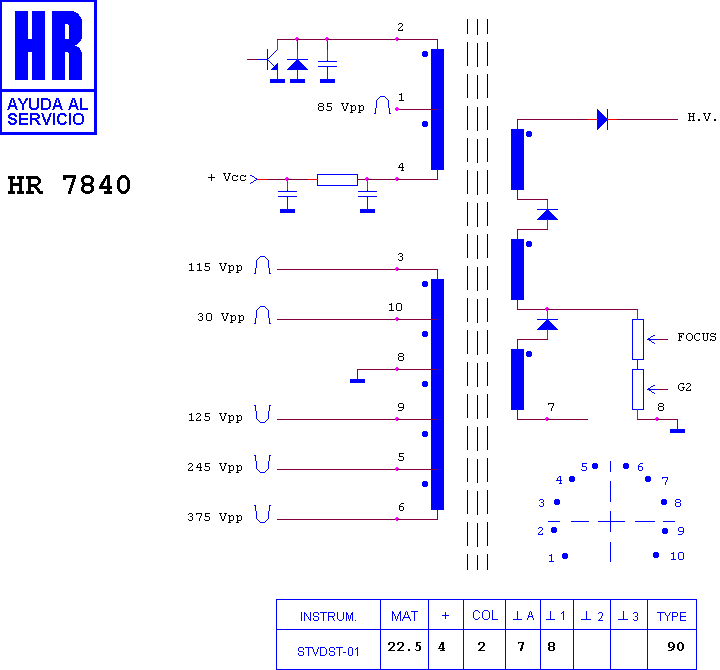

Schematic diagram for HR 7840
schematic

Manufacturer equivalents (7)

003201009 · AFS 286 · FA2044D · FCM 20 B 021 · FCM 2012 E 13 · RO 344 · TR 288

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7731 · HR 8138 · HR 7707 · HR 7484 · HR 7485 · HR 7909 · HR 8163 · HR 7945 · HR 7666 · HR 7896 · HR 7671 · HR 8277

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

BEON CTV 2003 R · HINARI CT 21
