HR 7945

type ST · family 1XP1 · 22.8 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

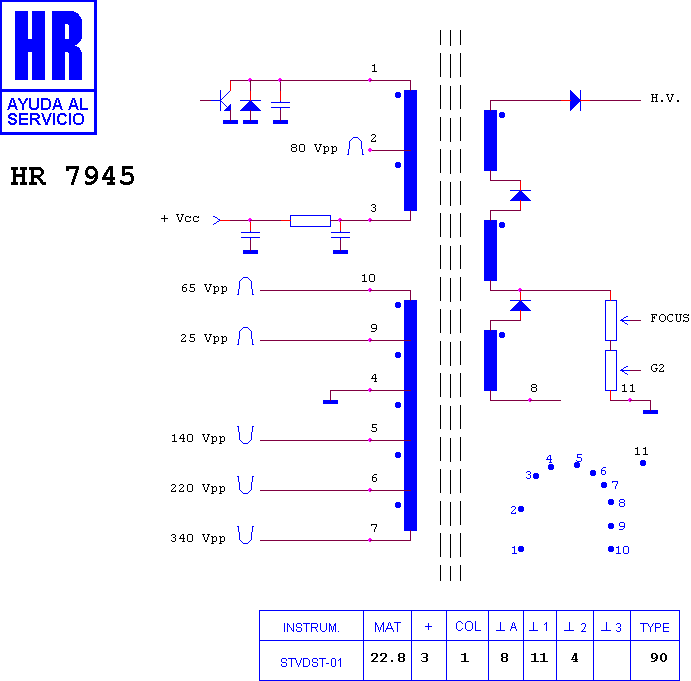

Schematic diagram for HR 7945
schematic

Manufacturer equivalents (2)

154 177 M · 154 277 M

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8163 · HR 7485 · HR 7606 · HR 7484 · HR 7897 · HR 7671 · HR 8277 · HR 7896 · HR 7953 · HR 7666 · HR 7742 · HR 8485

Fitted to (22)

COLON CHASIS PC 91 A · COLON CKT 9742 · COLON CKT 9745 · COLON CKT 9822 · COLON CKT 9825 · LG - GOLDSTAR CHASIS PC 91 A · LG - GOLDSTAR CKT 9742 · NEC 14 T 412 SK (CZ) · NEC C 1416 · NEC C 1459 · PHILCO CPM 2140 · PHILCO CPT 1430 · PHILCO CPT 2030 · PHILCO CPT 2030 R · PHILCO CPT 213 SR · PHILCO CPT 2130 · PHILCO CPT 2130 R · TENSAI CPT 1430 · TENSAI CPT 2030 · TENSAI CTPT 5139 · TENSAI TCT 5139 · TENSAI TCTP 5139
