HR 8163

type ST · family 1XP1 · 23.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

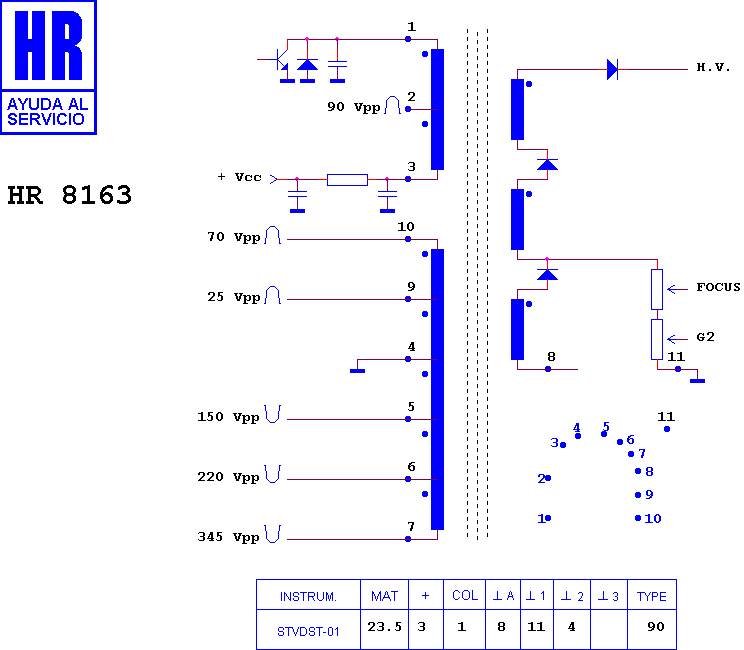

Schematic diagram for HR 8163
schematic

Manufacturer equivalents (7)

154 375 H · 6174V8004A · 6174V8004AVVZ · 6174V8004B · 6174Z8003A · 6174Z8004A · 9 GVZ 1389

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7485 · HR 7484 · HR 7897 · HR 7945 · HR 7896 · HR 7671 · HR 8277 · HR 7606 · HR 7666 · HR 7953 · HR 7707 · HR 7909

Fitted to (2)

GOLDSTAR - LG CA 19 A 20 X · GOLDSTAR - LG CHASIS MC 64
